DORMA ES75

FLEXIBLE, SIMPLE AND MODULAR :It is time to rethink sliding door operator. The new ES75 in the attractive DORMA design stand for simple automation of sliding door unit in all area of application.

It is the innovative drive system for door units up to 2 x 75 Kg, is of modular construction with world-wide tried and trusted electronic and new mechanic comprising only a few components and can be used for both 100 and 150 mm height.

The prefabrication MiniDriveUnit is also impresive : it is tested industrially with all the necessary electrical and electronic components.

The optimum solution for all customers who value simply assembly, low storage cost and ease for maintenance.

DORMA offers a particularly cost-effective sliding door operator in the tried and trusted DORMA quality with the New ES 75. The ES 75 sliding door operator is suitable for vestly differing applications and can be combined with all customary door profile. ii offers a number of adjustment possibilities, has excellent operation charecteristic and is easy to maintain.

The self-learning microprocesor controller guarantes realible operation, ensure dynamic and smooth movement and fulfils the highest safety requirements according to all European and German standards. The setting of all parameter is carrier out quickly and easily via an integrated display with push-buttons. Operation is extremly simply and menu-assisted. Additional is not reauired.

-Modular, Flexible system

-For door Unit up to 2 x 75 kg

-Problem-free adaptationto individual requirements

-Low number of system companents

-Industrially prefabricated and tested MiniDriveUnit

-Easy assembly of drive system

-Multi-function control, commissioning without programming equipment

-Easy fixing and commissioning

-Can be combined with all customary door profile

-Realiable function and high safety standards

-Smooth movement

-Complate program at program switches

-Numereous standard connections

-Realible investment due to compliance with all relevants European standards

-Height 100 and 150 mm

-Dept 180 mm

-Opening and closing force max 150N

-Opening speed (incremental setting) 10 - 50 cm/s

-Closing speed (incremental setting) 10 - 40 sec/s

-Hold-open time 0,5 - 30 sec

-Main voltage, frequency 230 V, 50/60 Hz

-Power consumption 180 W

-Internal protection IP 20

-Tested according to low-voltage guidelines  YES

-Manufacture according to ISO 9001 : 2000  YES

-Microprocesor controller

-Function program

  - Off

  - Automatic

  - Permanent open

-Emergency off

-Selt-learning

-Automatic reversing

-Connection for light barrier ( max 2 pair )

-Setting of basic parameter Via integrated display and push-buttons

-24 V output for external consumption

-Read-out error store with error codes

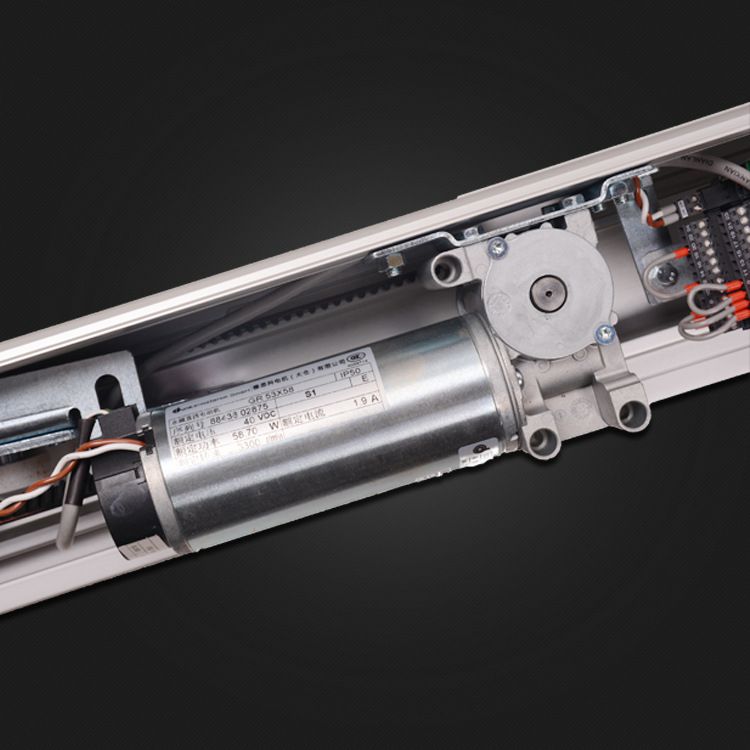

the heart of the ES75 : the prefabicated MiniDriveUnit with all the electrical components necessary is industrially tested and facilitates the assembly and maintenance of drive unit. the control unit has provenits worth a thousand times in all imaginable fields of application throughout the world

1.MiniDriveUnit

2.Transformer

3.Motor

4.Decoder

5.Control unit

6.Run and installation profile

7.carriage

8.Detection roller

9.Service cover holder

10.End stopper

11.Door suspension with adjustment device

12.belt connection
