TRIMEC TRIMEC ASSA ABLOY
To compliment the TRIMEC Access control system, a wide range of access control reader and Credentials are available from TRIMEC These include both EM and MIFARE reader and credentials and Biometric reader TRIMEC offer a range of simple but attractive designed card reader at affordable price in both 125 KHz EM and 13,56 MHz MIFARE configuration with ot without keypad. potted electronic make yhe TRIMEC card reader ideal for both indor and outdor applications TRIMEC wall mounted contacless card reader series can be connect easily to any of the TRIMEC 7 series access controller or any other make of access controller that can accept wiegand 26 or 34 bit data. both the EM and MIFARE series of TRIMEC reader are dual 26/34 bit output, field selectable. SINGLE DOOR, DUAL READER, ACCESS CONTROLLER : The TRIMEC 8 series of access controllers consists of two different range which are interchangeble if required. The V3.5 hardware version range is based on an 8 bit microprocesor and is a low cost entry level range. The V4 hardware version is an advance range base on a 32 bit microprocesor. both range can be use in a stand alone or networked configuration mode, both range are compatible with the 8 series lift controller and multi IO controller and both range can be connected to a TCP/IP network. Controller Description: -The 8-1-2T ( Trimec, 8 series, door controller, 1 Door, 2 Reader, TCP/IP enabled) -The 8-2-2T ( Trimec, 8 series, door controller, 2 Door, 2 Reader, TCP/IP enabled) -The 8-2-4T ( Trimec, 8 series, door controller, 2 Door, 4 Reader, TCP/IP enabled) -The 8-4-4T ( Trimec, 8 series, door controller, 4 Door, 4 Reader, TCP/IP enabled) -The 8-4-8T ( Trimec, 8 series, door controller, 4 Door, 8 Reader, TCP/IP enabled) -The 8-8-8T ( Trimec, 8 series, door controller, 8 Door, 8 Reader, TCP/IP enabled) is an advanced single door access controller allowing for the connection of both in and out card reader.

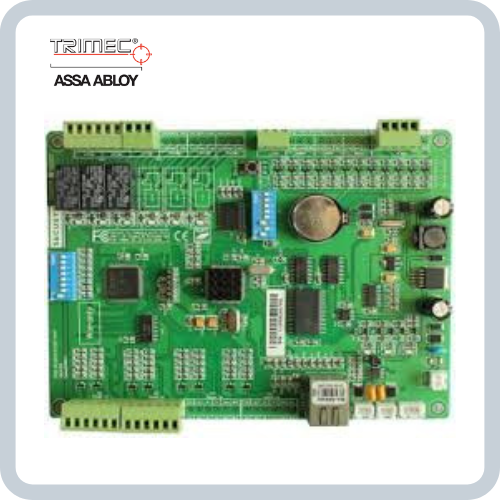

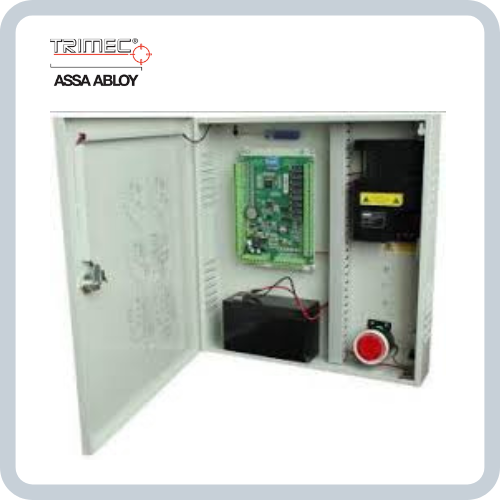

Controller Specification : -CPU: 32 Bit Procesor -1 door Relay (NC/NO) -1 door sensor (NO) -1 Exit Button -2 Auxilary output relays -3 Auxillary inputs -2 Wiegand reader -RS-232/RS-485/TCP/IP interface -Up to 127 controllers per RS485 bus -Sopports online computer polling -Communication speed: 19200/9600/4800 -15 time group for each door -Card capacity:30.000 -Transaction storage : 15.000 event -Maximum LAN distance: 1200 meters (4000ft) using RS-485 -Operating voltage :12V DC (+/-10%) -110/220 ac (50/60hZ) switched mode 12V DC 6A power supply c/w 13,8V DC battery charging circuit -Operating current < 200mA -Standby current <150mA -Working temperature: -40C - 70C -Data memory : 4M bit (protected) -1 lithium battery backup up to 10 years data retention) -Metal case dimensions : 420mmx384mmx72mm -weight :0,2Kg (without metal case), 4,7Kg (with metal case & PSU)
Feature : -32 bit TIARM cortex TM-M3 procesor with 4M bit data memory -Communication Model: RS232 (max 50ft), RS-485 (max 4000ft) or TCP/IP -On board 100mBit real TCP/IP -Compatible with all Wiegand reader formats from 24 to 72 Bits -Event flow control -Supports 500 Visitors -Supports 10 Emergency card -CE, FCC, RoHS approval
