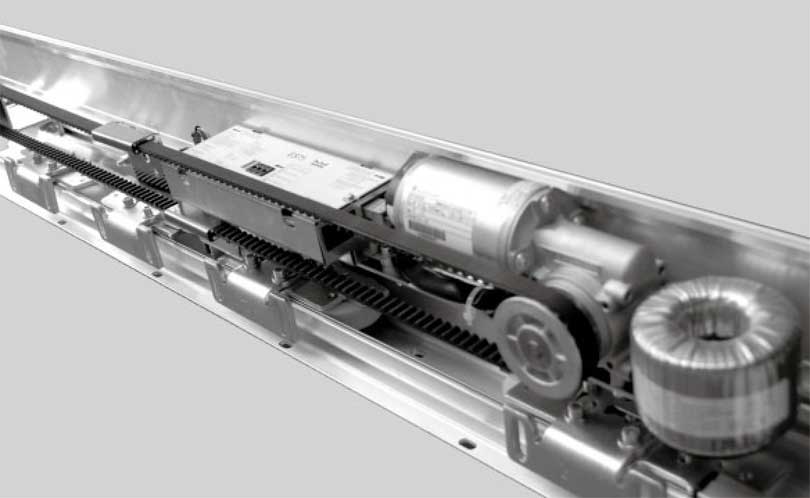

DORMA ES200EASY
It
is time to rethink sliding door operators. The new ES 200 Easy in the attractive DORMA design stands for simple automation of
sliding door units in all areas of application. It is the innovative drive
system for door units up to 2 x 100 kg, is of modular construction with world-wide
tried and trusted electronics and new mechanics comprising only a few
components and
can be used for both 100 and 150 mm height. The prefabricated MiniDrive Unit is also impressive; it is tested industrially with all the
necessary electrical and electronic components. The optimum solution for all
customers who value simply assembly, low storage costs and ease of maintenance. High quality, excellent
costeffectiveness DORMA
offers a particularly cost-effective sliding door operator in the tried and
trusted DORMA quality with the new ES200Easy. The basic version of the ES 200 sliding door operator is
suitable for vastly differing applications and can be combined
with all customary door profiles. It offers a number of adjustment
possibilities, has excellent operation
characteristic and is easy to maintain. The
self-learning microprocessor controller guarantees reliable operation, ensures dynamic
and smooth movements and fulfils the highest safety requirements according to
all European and German standards. The setting of all parameters is carried out
quickly and easily via an integrated display with push-buttons. Operation is
extremely simply and menu-assisted. Additional
programming equipment is not required.
DOOR PARAMATERS Single panel sliding door -Clear passage with LW 700 - 3000 mm -Door panel weight max 1 x 120 Kg
DOUBLE PANEL SLIDING DOOR -Clear passage with LW 800 - 3000 mm -Door panel weight, max 2 x 100 Kg
TECHNICAL DATA OF OPERATOR : Height : 100 and 150 mm Instalation depth : 180 mm Opening and closing force, max 150N : - Opening speed ( incremental setting) :10 -70 cm/s Hold-Open time : 10 - 50 cm/s Supply voltage, frequency : 230V, 50/60Hz Power consumption : 250 W Class of protection : IP 20 Compliant with EU Low Voltage directive EMC Directive : - Manufactured to ISO 9001 : 2000 : -
DORMA DETAIL : Companents : 1.MiniDriveUnit 2.Power supply Unit 3.Motor 4.Decoder 5.Basic Module (BM) 6.Function module (FM) 7.Track rail and mounting profile 8.Rechargeable battry pack (Optional) 9.carrier head 10.Pulley Locking device (Optional ) 11.Service cover breaket 12.End stop 13.Door connection with adjustment device 14.Belt connection 15.Belt tensioning device.
LAYANAN : Pengecekan / Survei biaya Transportasi untuk wilayah Indonesia
Perbaikan / Service untuk wilayah Indonesia
Maintenance / Pemeliharaan untuk wilayah Indonesia
untuk Harga terbaik silahkan hubungi marketing kami : Product Consultant - Marketing SAS Teguh Susanto
Marketing & admin SAS Purwanti - Admin Meliputi :
-Konsultasi.
-Training.
-Pekerjaan pemasangan Unit Automatic door.
-Pemasangan daun pintu,(tidak termasuk pengadaan)
-Penyetelan system buka tutup.
-penyetelan system access door (jika di hubungkan ke access door )
-Garansi selama 1 tahun suku cadang dan service.
-2X kunjungan selama 1 tahun (jakarta).
SPESIFIKASI :
-Base rail Alumunium 4200mm
-Transformer
-Motor
-Module ES200/ES200Easy
-Motion detector / sensor infra red
-Program switch Lockable
-Door carrier, Tooth belt, Floor guide,End stoper
-Glass Clamping untuk kaca 12mm
-Return pulley OPTIONAL :
-Pulley lock
-Safety light barrier
-Cover
-Battry pack
-Daun pintu kaca tempered
-Penggantung / Hanger Mesin -Power 220 VAC
-Pekerjaan sipil KOTRAK MAINTENANCE Silahkan klik DISINI
|
