DORMA ES68

Automatic Door System | SECURELUTION | Dorma | IBX


DORMA ES68 NEW GENERATION

FLEXIBLE, AESTHETIC YET ECONOMICAL - PREMIUM FOR THE MASSES : From DORMA world leader of premium entrance solutions, comes a new innovation for emerging makets : the ES 69 SERIES.

The groundbreaking product was designed to meet the needs of the basic standalone entrance, and to make the convenince of the automatic sliding door accessible to averyone, anywhere in the world. and not just any automatic door, but a DORMA automatic door : that means quality and reliability from more than 100 years of rich German industry tradition.

The revolutionary ES 68 SERIES may start off basic in scope, but it works like the premium machine it was designed to be.

QUALITY IN EVERY DETAIL : Born out of the DORMA heritage, the ES 68 SERIES has to fulfill the same stringent demand as any other DORMA product. Our engeneers challenged themselves to create an operator tha is economical accessible to the masses but yet performs like a pedigree, as expeccted of DORMA.

The they excled by re-locking into every detail and re-inverting tham : from the compact, light-weight, load-bearing silent track profile, the noise-reducing ultra-durable design and material for the carrier roller, the low-noise low-friction brushless motor to the compact and powerful worn-gear gearbox. Nothing is taken for granted

INNOVATE FOR CUSTOMERS : In the proses of delivering the most performance for every basic detail, no effort is spared in creating new DORMA solution for every customer need. We ara thus proud to introduce the DORMA Remote Key + Program control, a sleek designer keychain device that gives small business owners the power to control the doors right in their pockets. Detailed attention to aesthetics created the of the door. leading a premium feel to the entrance. Finaly, our patented DORMA Power pack lets user buy only the functions they need better serving our customers in emerging markets.

HASSLE-FREE, EVERYDAY : In door automation, a premium machine should work silently in the background, 24-7. This means it must smart in its daily operation dealing with various unforeseen situations.

The inteligent ES 68 SERIES is simply plug-and-play, as it will leard the door opening on start-up and ajust its parameter accourdingly to ensure a confortable passage. smiliarly when faced with ostraction in the passage way, it will cleverly adjust itself and easily reverts to normal operation. With screw-positioning grooves and foolproof connectors, instalation is easy, to ensure the door is up fast and running well.

KEY SPESIFICATION :
Door Parameter
2-Panel          Passage width           700-2100mm
Sliding door    Door panel weight     max 2 x 80Kg

1-Panel          Passage width            max 1000mm
Sliding door    Door panel weight      max 90Kg

Technical Data
Instalation height : 125mm
Instalation depth : 102 mm
Manual opening/closing : 150N
Opening speed (potentiometer setting) : 10-50 cm/s
Closing speed (potentiometer setting) : 10-40 cm/s
Hold open time (potentiometer setting) : 0-9 sec
Main voltage, frequency : 110/230V, 50/60 Hz
Power consupstion  : 150W
International protection : IP 20

CONTROL UNIT :
Microprocesor Controller
Functional program selected via DORMA Remote key
-Off
-Exit Only
-Automatic
-Permanent Open

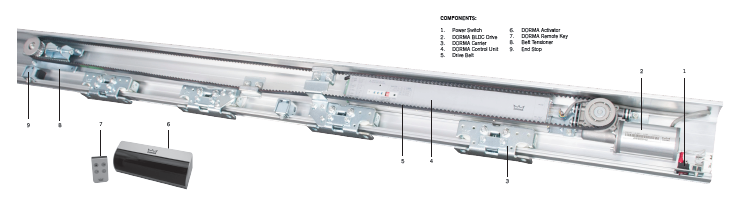

COMPONENT :
1.Power switch
2.DORMA BLDC Drive
3.DORMA Carrier
4.DORMA Control unit
5.Drive Belt
6.DORMA Activator
7.DORMA Remote Key
8.Belt Transioner
9.End stop

SPESIFIKASI ES68, max 80Kg :

-Transformer
-Motor Drive
-Basic control module
-Track and mounting profile 4200 mm
-Motion Detector / Sensor Infra red
-Return pulley
-End stop, Door carrier w/ Main roller, Floor guide
-Remote Program switch
-Tooth Belt and Belt connection
-Glass Clamping

OPTIONAL :
-Battrey Pack
-Safety Ligth Barrier
-Cover alumunium

Harga tidak/belum termasuk :
-Daun pintu kaca tempered
-Penggantung / Hanger Mesin
-Power 220 VAC
-Pekerjaan sipil

LAYANAN  :
Pengecekan / Survei biaya Transportasi untuk wilayah Indonesia
Perbaikan / Service untuk wilayah Indonesia
Maintenance / Pemeliharaan untuk wilayah Indonesia
